Knowledge｜The Core of CNC Machining: An In-Depth Look at Lathes, CNC Lathes, and Tailstocks
In modern industry where precision is paramount, the "lathe" stands as a true champion among machine tools.From its origins as a manually operated device to today's CNC lathe, this evolution has not only vastly improved machining efficiency but also opened up numerous manufacturing possibilities. CNC machining, a crucial metal cutting process, plays a vital role across various industries, including aerospace, automotive, and medical equipment. Let’s delve into the fundamentals of lathes, the capabilities of CNC machines, and various aspects of lathe machining to better understand this indispensable technology.
Lathes: A Time-Honored Helper for Rotary Machining
When it comes to "lathes", they utilize the rotation of the workpiece itself, combined with tool movement, to perform cutting operations. In simple terms, the workpiece is securely mounted on the spindle, spun at high speeds, and trimmed by a tool mounted on a tool post, following a predefined path to remove excess material bit by bit until the desired shape and size are achieved.
Early lathes were almost entirely manually operated, heavily relying on the operator's skill and experience. However, with continuous technological advancements, various new types of lathes have emerged, with the powerful CNC lathe being the most prominent. Furthermore, the lathe tailstock plays a crucial role in the lathe's structure by stabilizing long workpieces and enabling operations like drilling and reaming, proving essential for ensuring machining precision and versatility.
What is CNC Lathes: The Perfect Fusion of Intelligence and Efficiency
"CNC" stands for Computer Numerical Control. A "CNC lathe" is an automated lathe that operates through pre-written programs to control machine operations. Compared to traditional lathes, CNC lathes offer numerous advantages:
Exceptional Precision: CNC systems can precisely control every tool movement, achieving extremely fine machining precision to ensure parts meet strict dimensional and geometric standards.
Enhanced Efficiency: Once programmed, a CNC lathe can operate continuously and automatically, significantly reducing machining time and naturally boosting production efficiency.
Consistent Quality: CNC machining ensures every part follows the same program, maintaining high uniformity in product quality.
Handles Complex Shapes: CNC control allows the machining of complex curves and surfaces that would be challenging or impossible on a manual lathe.
Reduced Labor Costs: The automated operation of CNC lathes reduces dependence on operators, leading to substantial long-term labor cost savings.
Due to these advantages, "CNC lathes" have become the primary equipment for precision machining, whether for high-volume production, high-precision parts, or complex shape machining. In CNC lathes, the positioning and movement of the tailstock can also be precisely controlled through programming, further enhancing automation and precision in machining.
The Versatile Skills of Lathe Machining
"Lathe machining" is an extremely versatile metal cutting craft capable of completing various machining tasks, such as:
External Turning: Shaping the outer surface of the workpiece into a cylindrical form.
Internal Boring: Machining holes inside a workpiece.
Facing: Machining workpiece end faces flat to achieve required surface roughness.
Grooving: Cutting grooves of specific width and depth in workpieces.
Parting/Cut-off: Cutting workpieces from long material stock.
Threading: Creating external or internal threads on a workpiece.
Form Turning: Using specially shaped tools to produce contoured surfaces in a single operation.
Knurling: Pressing a pattern onto the surface of a workpiece to increase friction or for aesthetic purposes.
The lathe tailstock plays an indispensable role in many of these lathe machining tasks. For instance, when turning long workpieces, the tailstock provides support, preventing vibration or deformation during high-speed rotation. For drilling or reaming operations, the drill bit or reamer is mounted in the tailstock, and the process is completed by feeding the tailstock.
The applications of lathe machining are incredibly broad; nearly every industry requiring metal parts relies on it:
Automotive Industry: Producing engine parts, drive shafts, gears, etc.
Aerospace Industry: Manufacturing aircraft engine components, landing gear parts, and other high-precision components.
Medical Device Industry: Orthopedic implants, dental implants, etc.
Electronics Industry: Special screws and nuts, terminal blocks, and other electronic components.
Mold Industry: Manufacturing various mold components.
Mechanical Manufacturing: Producing various mechanical parts and components.
Key Tips for Improving Lathe Machining Efficiency and Precision
To maximize the performance of lathes, especially CNC lathes, and produce high-quality "lathe machining" results, the following key factors require special attention:
Machine Selection and Maintenance: Choose appropriate lathe models based on different machining requirements and perform regular maintenance to ensure machine precision and stability. Simultaneously, lubrication and maintenance of the lathe tailstock are equally important to ensure smooth movement and secure locking.
Tool Selection and Management: Select appropriate cutting tool materials, geometries, and coatings. Establish a comprehensive tool management system to consistently maintain tool sharpness and lifespan.
Cutting Parameter Settings: Reasonably set cutting speed, feed rate, and depth of cut parameters to achieve optimal balance between efficiency and surface roughness.
Fixture Selection and Design: Choose suitable fixtures to ensure workpieces remain stable during machining, reducing vibration. For complex parts, custom fixtures may need to be designed.
Program Development and Optimization (CNC Specific): Write efficient and accurate CNC machining programs and adjust and optimize them based on actual machining conditions to reduce machining time and improve quality. This includes precise control and positioning of programmable tailstocks within programs.
Operator Skill & Experience: Experienced operators better understand machine characteristics, select appropriate machining parameters, and promptly handle various situations encountered during machining.
Environmental Control: Keep the machining environment clean and maintain stable ambient temperatures to reduce external influences on machining precision.
Conclusion: Continuous Evolution and Future Vision of CNC Technology

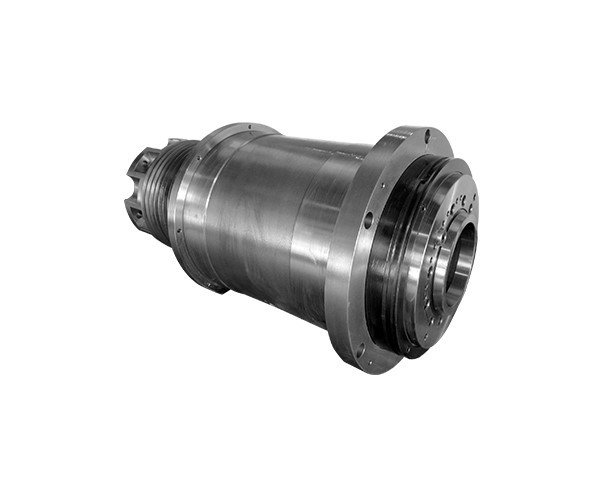

Lathe technology continues to advance, with CNC lathes and lathe machining methods constantly innovating. The spindle and tailstock, as important lathe components, are also continuously improving. In the future, we'll see smarter, more precise lathes equipped with advanced sensors and control systems, even capable of self-diagnosis and optimization.
Regardless of technological developments, lathes will continue playing crucial roles in manufacturing. Understanding lathe and CNC lathe technology is vital for improving manufacturing efficiency. With the collaboration of technical personnel and technology, this craft will continue to shine, providing the most solid manufacturing foundation for all industries.
