As global manufacturing moves toward high precision, automation, and long-duration operation, the CNC lathe has become an essential machine across industries such as aerospace, automotive manufacturing, medical implants, tooling, and precision component production. To achieve high accuracy and consistent performance, the CNC lathe spindle and lathe tailstock must deliver excellent rigidity, temperature stability, and long-term structural precision.

With over 30 years of engineering experience, FEPO specializes in designing and manufacturing high-precision CNC lathe spindles, hydraulic tailstocks, manual tailstocks, and customized motion modules. By emphasizing ultra-stable structural design, FEPO ensures that each product maintains μm-level accuracy, enabling customers to achieve superior machining performance in modern manufacturing environments.

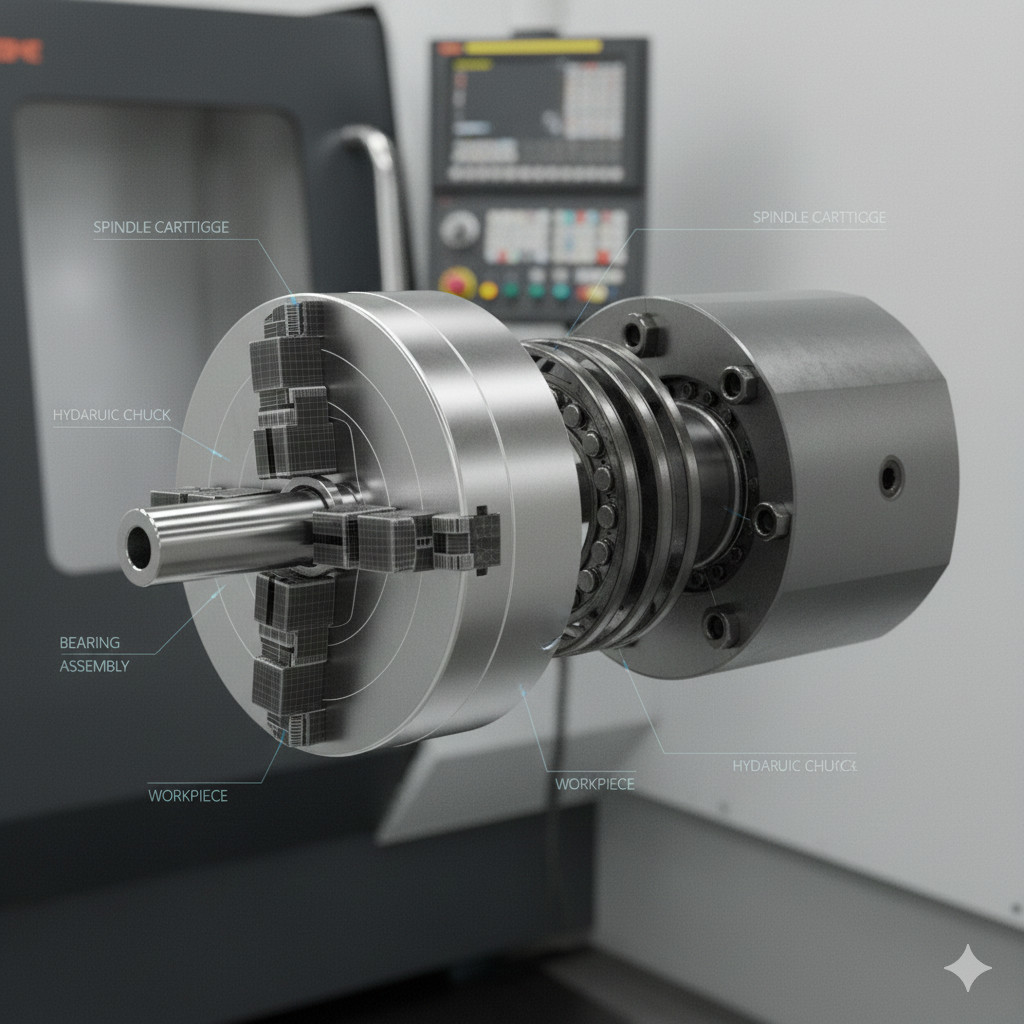

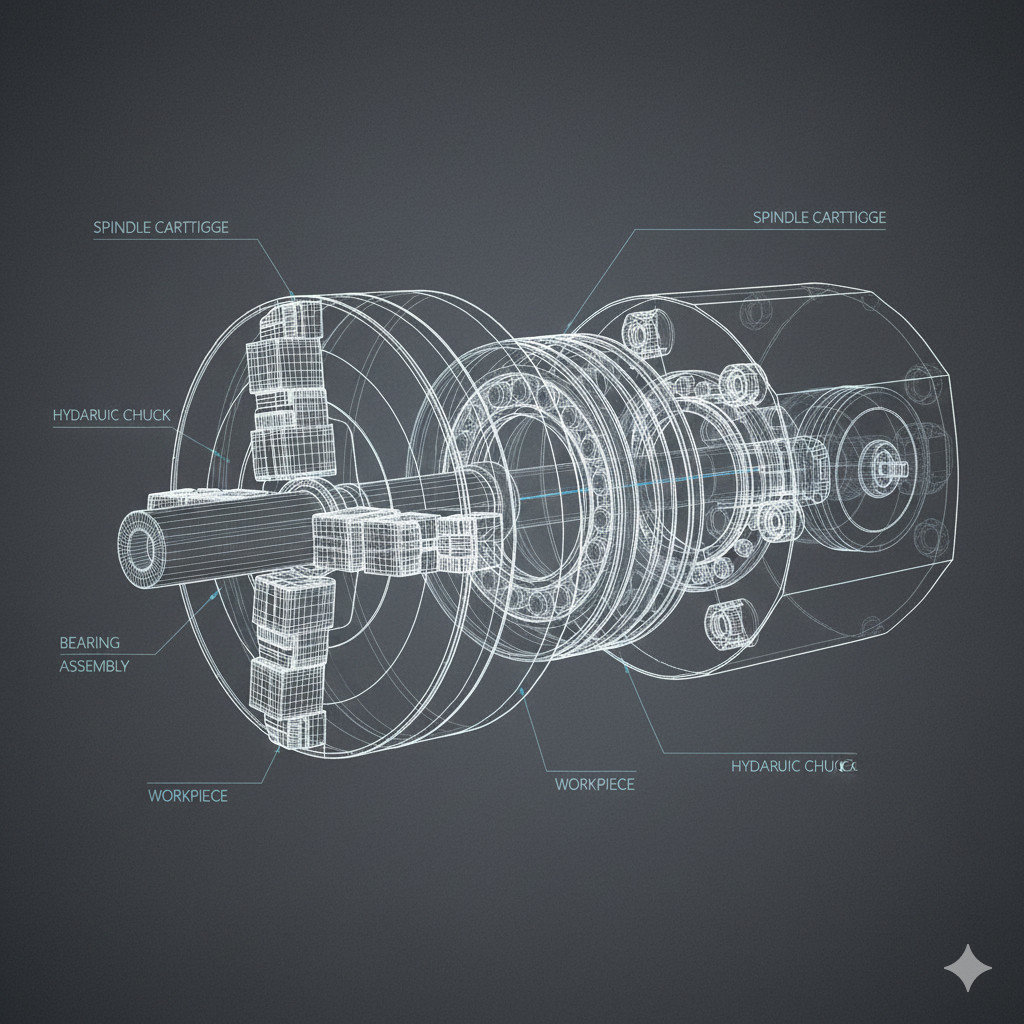

FEPO Lathe Spindle: Precision Through Structural Rigidity and Thermal Stability

High-rigidity bearing configuration for stable machining

FEPO CNC lathe spindles utilize a combination of double-row cylindrical roller bearings (NN30 series) and angular contact ball bearings, providing exceptional radial and axial rigidity. Through blue-dye inspection, FEPO ensures bearing contact areas exceeding 80%, enabling low-vibration machining even under heavy cutting loads, high-speed turning, or long-duration continuous operations. This configuration is a key strength of FEPO’s CNC belt driven spindle solutions.

This structural arrangement is particularly suitable for precision turning, mass-production environments, and high-speed automated machining lines, where stability and repeatability are critical.

Temperature rise control and dynamic balancing

Spindle accuracy and consistency depend heavily on thermal stability and rotational balance. Each FEPO spindle undergoes:

• Long-duration run-in testing to validate temperature rise and minimize thermal deformation.
• Dynamic balancing correction to reduce vibration and improve surface finish quality.
• Micron-level runout inspection before shipping, ensuring rotational precision under real cutting conditions.

These processes enable FEPO spindles to maintain dimensional accuracy during prolonged high-speed machining sessions, which is especially important in aerospace, medical and precision mold industries.

Automation-ready customization

FEPO’s CNC belt driven spindle solutions can be customized with:

• Brake discs
• Encoders
• Hydraulic clamping systems
• Various spindle nose standards

This flexibility allows seamless integration into automated production lines, supporting functions such as automated clamping, spindle-speed monitoring, and position feedback. As a result, FEPO spindles help customers increase production efficiency and process reliability.

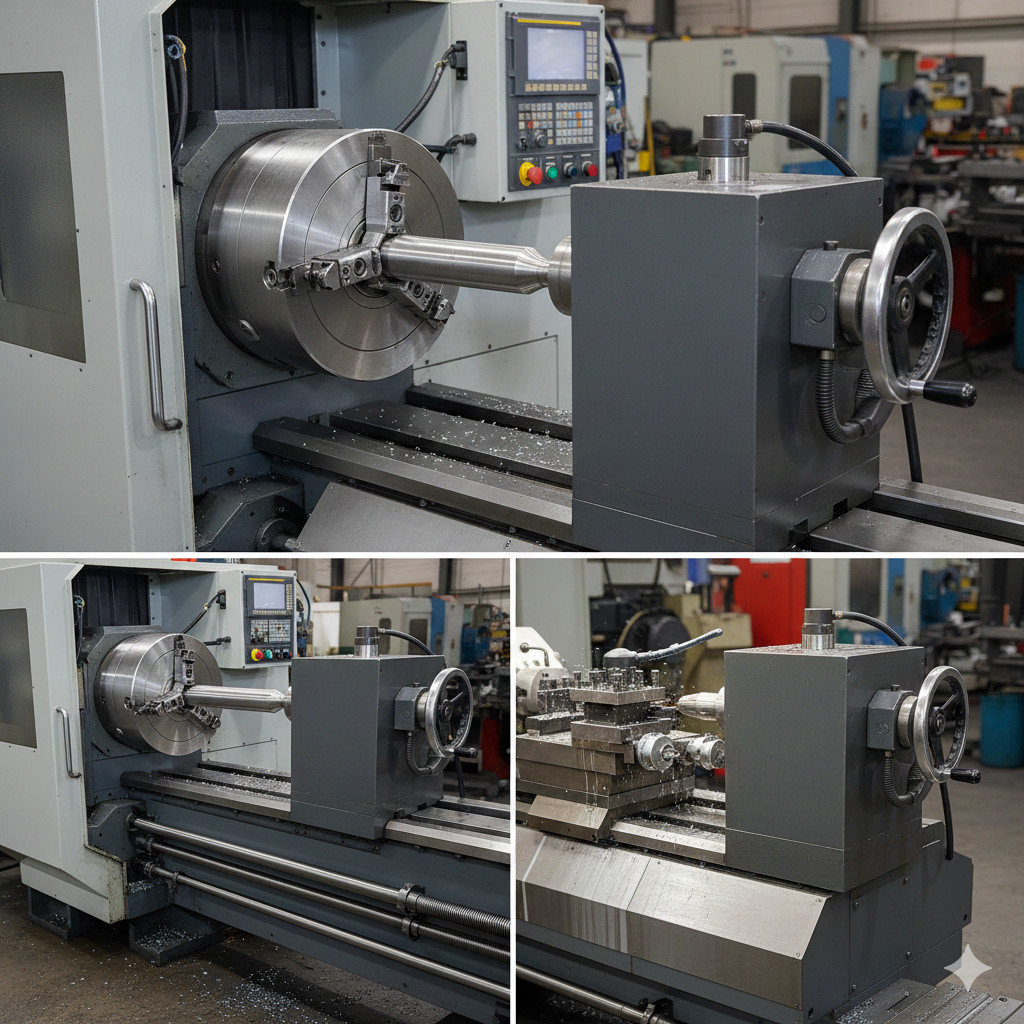

FEPO Lathe Tailstock: Structural Stability for Long Workpieces

Hydraulic tailstock: Smooth low-pressure motion and high rigidity

For long shafts, heavy components, or workpieces requiring stable support during turning, the tailstock plays a crucial role. FEPO hydraulic tailstocks are designed to provide:

• Smooth feed motion at only 5 kg/cm², reducing machine load and energy consumption.
• Compatibility with live centers for high-speed rotation support.
• Options for built-in or external hydraulic cylinders that can be integrated with CNC control.

This design allows the tailstock to effectively suppress deflection and vibration of the workpiece during machining, resulting in higher accuracy and better surface quality.

FEPO hydraulic tailstocks are ideal for applications such as automotive drive shafts, aerospace structural components, and high-speed rotating parts where stability and rigidity are essential.

Manual tailstock: Precision and cost efficiency

For platform-type CNC lathes and medium-sized machines, FEPO offers manual tailstocks featuring ground screw drive systems. These tailstocks provide smooth adjustment, accurate positioning, and sufficient rigidity, making them suitable for medium-sized workpieces and custom machine configurations.

With a straightforward mechanical structure and easy maintenance, FEPO manual tailstocks offer a practical and economical solution for manufacturers who value both precision and cost control.

Core Technologies Behind FEPO’s Precision Manufacturing

Ultra-precision LAPPING and honing technology

To ensure optimal fit and motion accuracy in spindle housings, tailstock bodies, and other motion units, FEPO has developed its own internal-hole LAPPING process. For bores within Ø60–Ø100 mm and lengths of 200–300 mm, FEPO can achieve:

• Cylindricity within 2 μm
• Fitting clearance under 4 μm

These capabilities greatly enhance structural rigidity and motion stability, especially in systems where long-term accuracy is required, such as dressing modules or high-precision slide units.

Bearing preload control and application technology

FEPO develops its own 1 μm-level bearing preload inspection fixtures to precisely monitor radial expansion and preload conditions under operating states. Combined with NN30 double-row cylindrical roller bearings and blue-dye contact inspection techniques, FEPO achieves over 80% contact area and uniform load distribution.

This reduces operating noise and temperature rise, while extending spindle life and maintaining performance for high-speed CNC applications.

Conclusion: FEPO Provides the Structural Foundation for High-end Manufacturing

CNC lathe spindles and tailstocks are more than mechanical components—they are the structural foundation of machining quality and process reliability. With industry-leading rigidity, thermal stability, and μm-level manufacturing precision, FEPO offers more than parts; it delivers integrated and reliable machining solutions for global manufacturers.

As industries shift toward automation, high-precision machining, and long-term equipment stability, FEPO continues to support customers with high-performance CNC belt driven spindles, lathe spindles, and tailstocks tailored to advanced manufacturing needs.

FEPO — Precision that builds the future of advanced machining.
